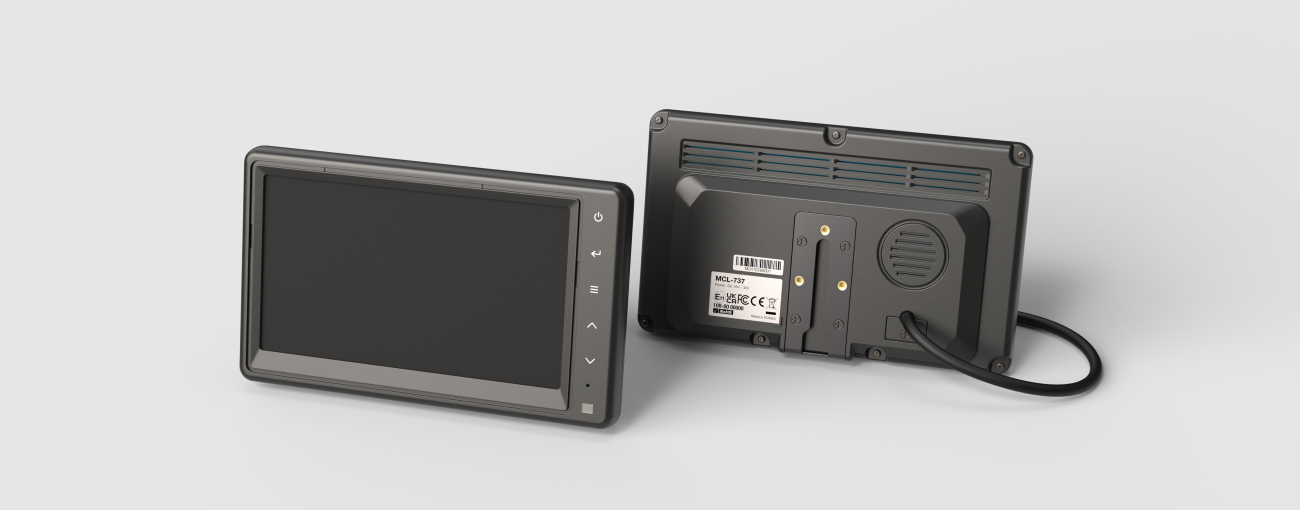

    MCL-737




    ◾ Budget Model

    ◾ A·HD Monitor

    • ▪️ 7 Inch Digital LCD Panel
    • ▪️ Auto NTSC / PAL / A·HD Detection
    • ▪️ Auto Day and Night Detection
    • ▪️ Support Normal Camera Only
    • ▪️ Operating Temperature -30℃ ~ 70℃ (-22°F ~ 158°F)
    • ▪️ Built in Speaker














    SPECIFICATION



     Power Input

     DC 10V ~ 32V

     Power Consumption

     Max 15 Watt

     Video System

     NTSC / PAL, A·HD compatible

     Panel

     7 Inch Digital
     Panel Ratio  16:9
     Panel Brightness  550cd/㎡
     Panel Resolution  1024(H) × 3(RGB) × 600(V) pixels

    Display Mode

     Single
     Camera Input (2 Channel)  Mini 4Pin DIN or 4Pin IP Connector (1Vp-p 75Ω)
     Operating Temperature  -30℃ ~ 75℃ (-22°F ~ 167°F)
     IP Rating  -
     Vibration  2G
     Weight  450g (Monitor Only)
     Dimensions  195(W) × 117(H) × 26(D) mm
     7.8(W) × 4.6(H) × 1.0(D) inch
     OSG Control
     ※ Individual Control per Channel available    		  Day and Night Sensor
     Auto Scan
     Bright, Contrast, Color, Tint Adjust
     Mirror / Normal, Up / Down, Day / Night Mode
